Fiber Optics Sensors
With its fiber optic technology, Sensor Line meets all requirements for modern traffic systems such as precise axle detection and cyclist counting. In addition to the standard accessories, Sensor Line also offers a highly flexible, high-performance classification system for road traffic.
>> Brochure SL Road Traffic Sensors

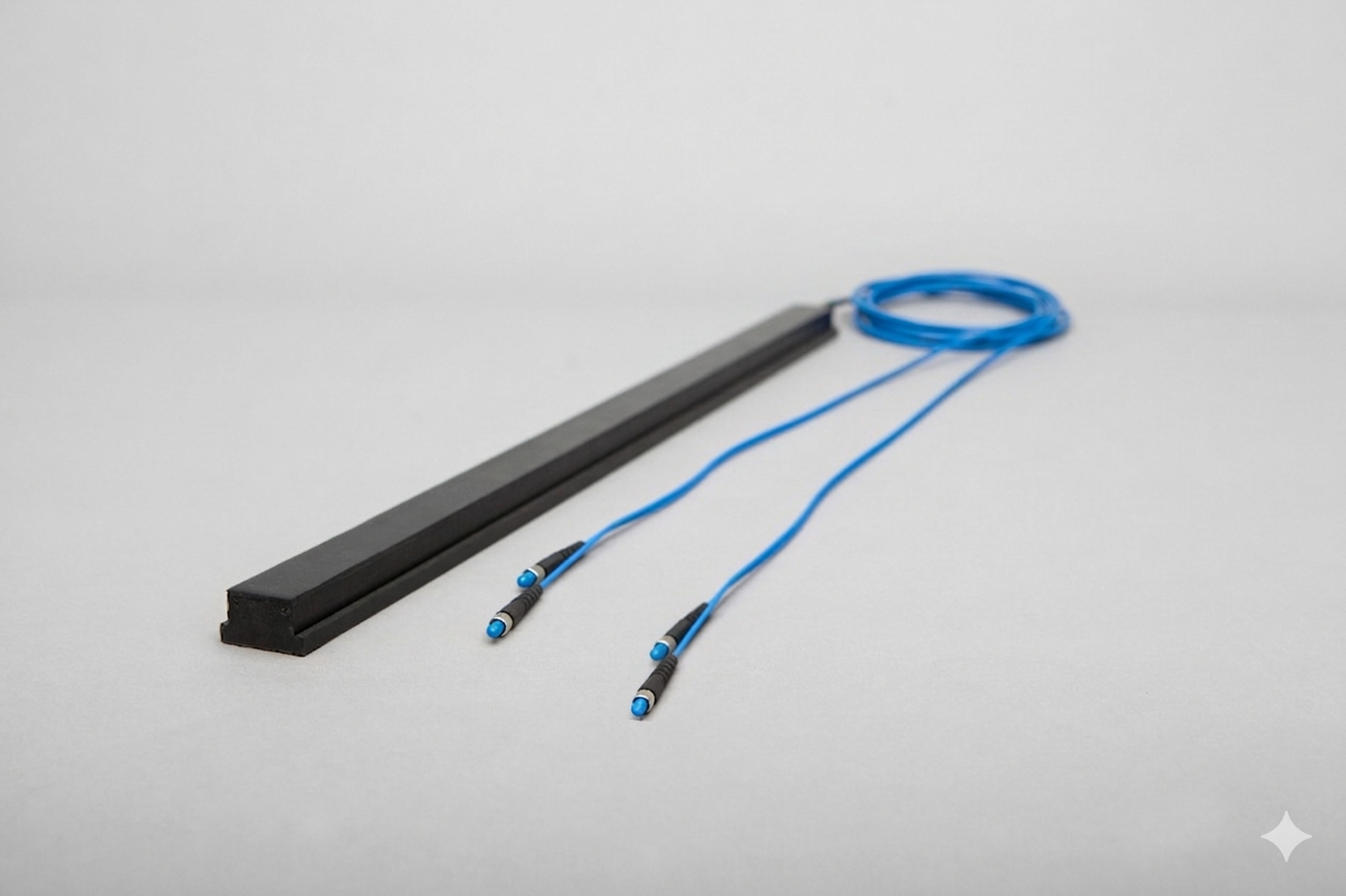

SL PUR Sensor
The SL PUR sensor detects vehicles in road traffic for applications like axle counting, vehicle classification, speed measurement and headway measurement. The SL PUR sensor is designed for permanent installation in concrete or asphalt roads. Its special T-shape ensures a fast and long-term installation.
Advantages:
• Excellent service life
• 99,99+% vehicle detection rate
• Visibility independent
• Noise free signal
• Maintenance free
Accompanying Products
- SL MA-X10 - Dynamic Optoelectronic Interface for 1-3 Sensors
- SL MD-220 - Static Optoelectronic Interface for 2 Sensors
- SL PUR Slot Filler Material
- SL Hanger Bar
Technical Data

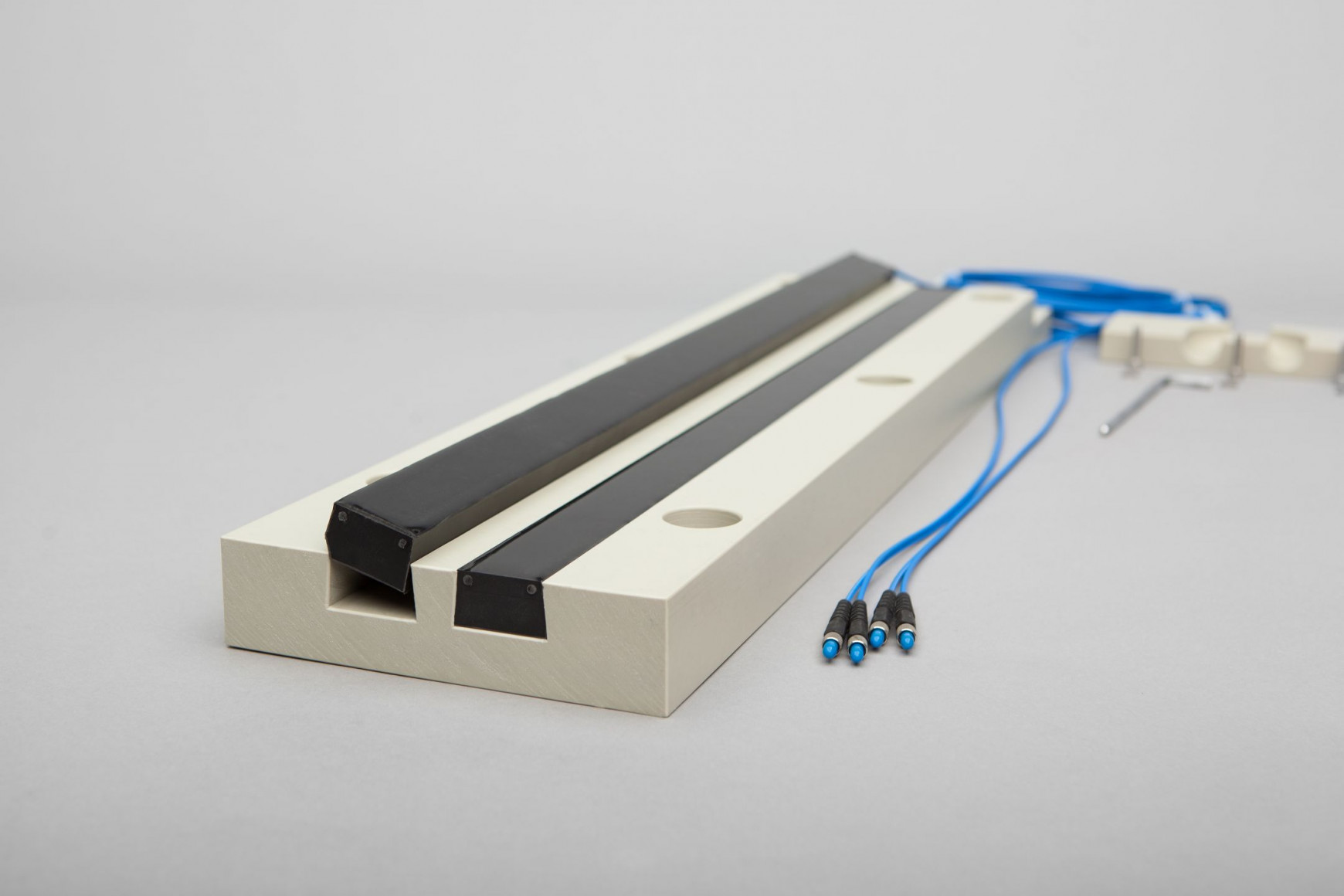

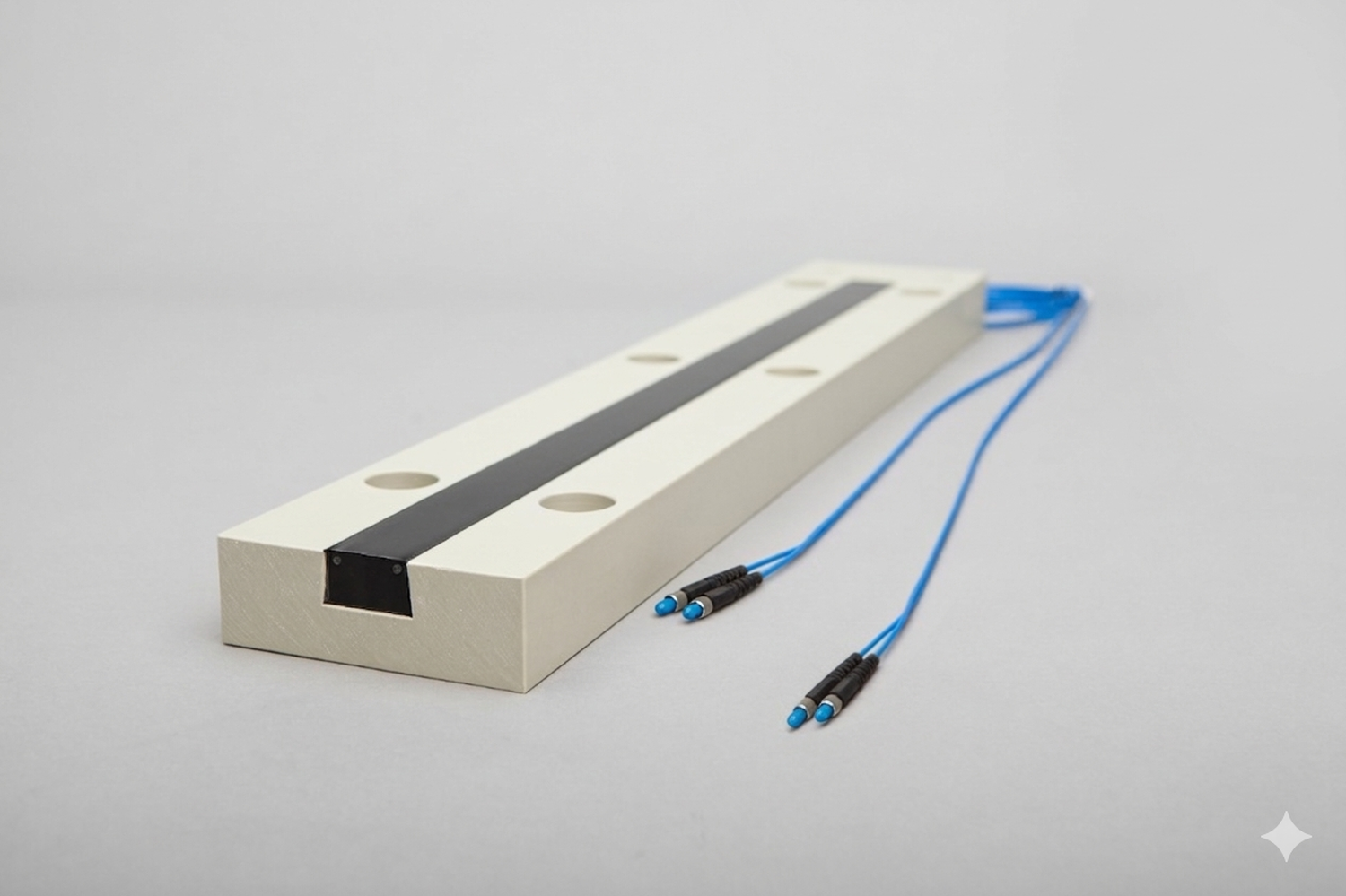

SL EZ Sensor
The SL EZ sensor detects vehicles in road traffic for applications like axle counting, vehicle classification, speed measurement and headway measurement. The SL EZ sensor is designed for permanent installation on a concrete foundation in roads. It is a polyurethane-based reinforced fiber optic traffic sensor which is preinstalled in a frame of high-density polymer. The frame is fixed to a concrete base with bolts or threaded rods. The sensor strip can be replaced quickly and easily without additional roadworks, which is particularly necessary for free flow tolling.
Advantages:
• Quick and easy replacement
• Excellent service life
• 99,99+% vehicle detection rate
• Noise free signal
• Maintenance free
Accompanying Products
- SL MA-X10 - Dynamic Optoelectronic Interface for 1-3 Sensors
- SL MD-220 - Static Optoelectronic Interface for 2 Sensors
- SL Bolt Set
Technical Data

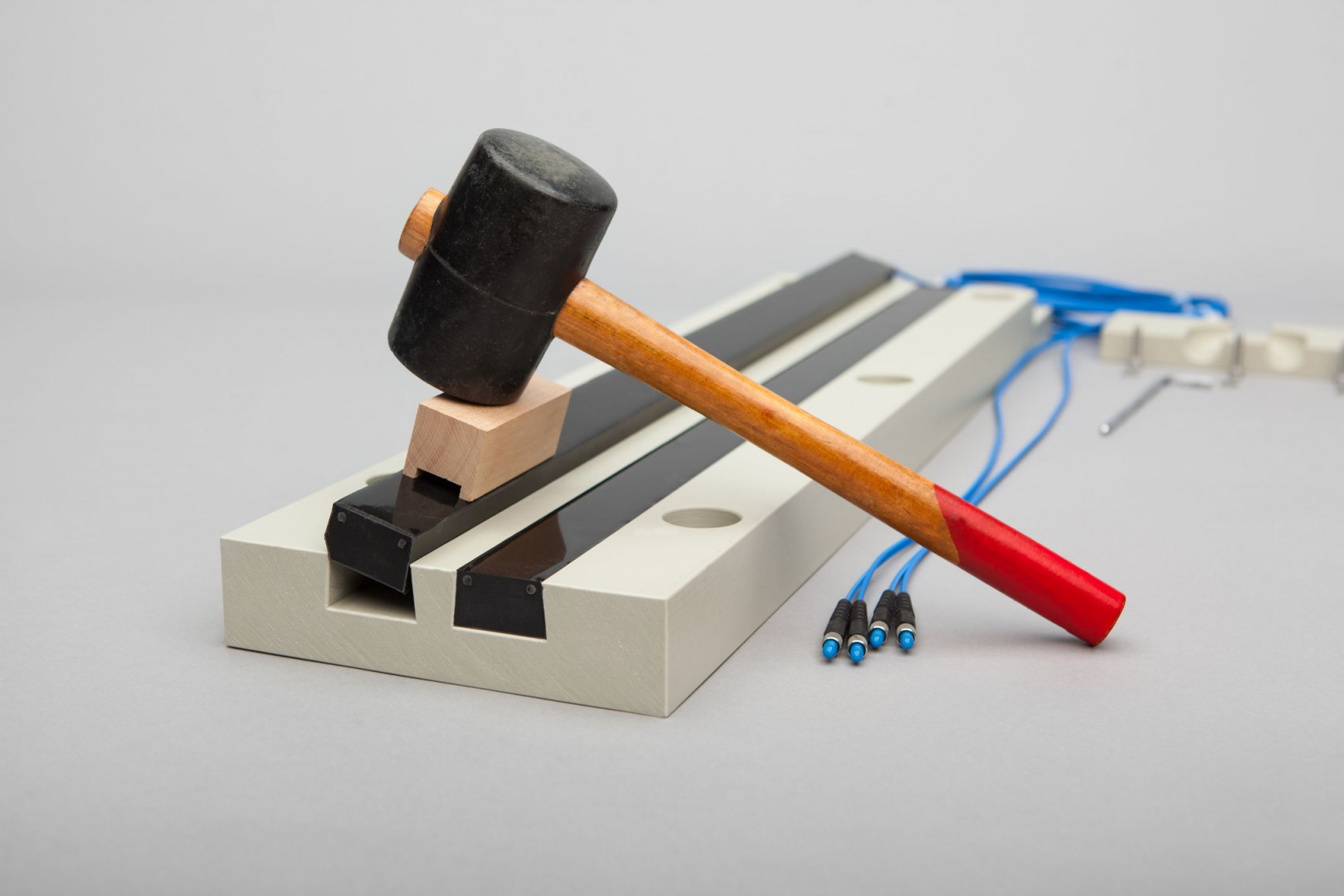

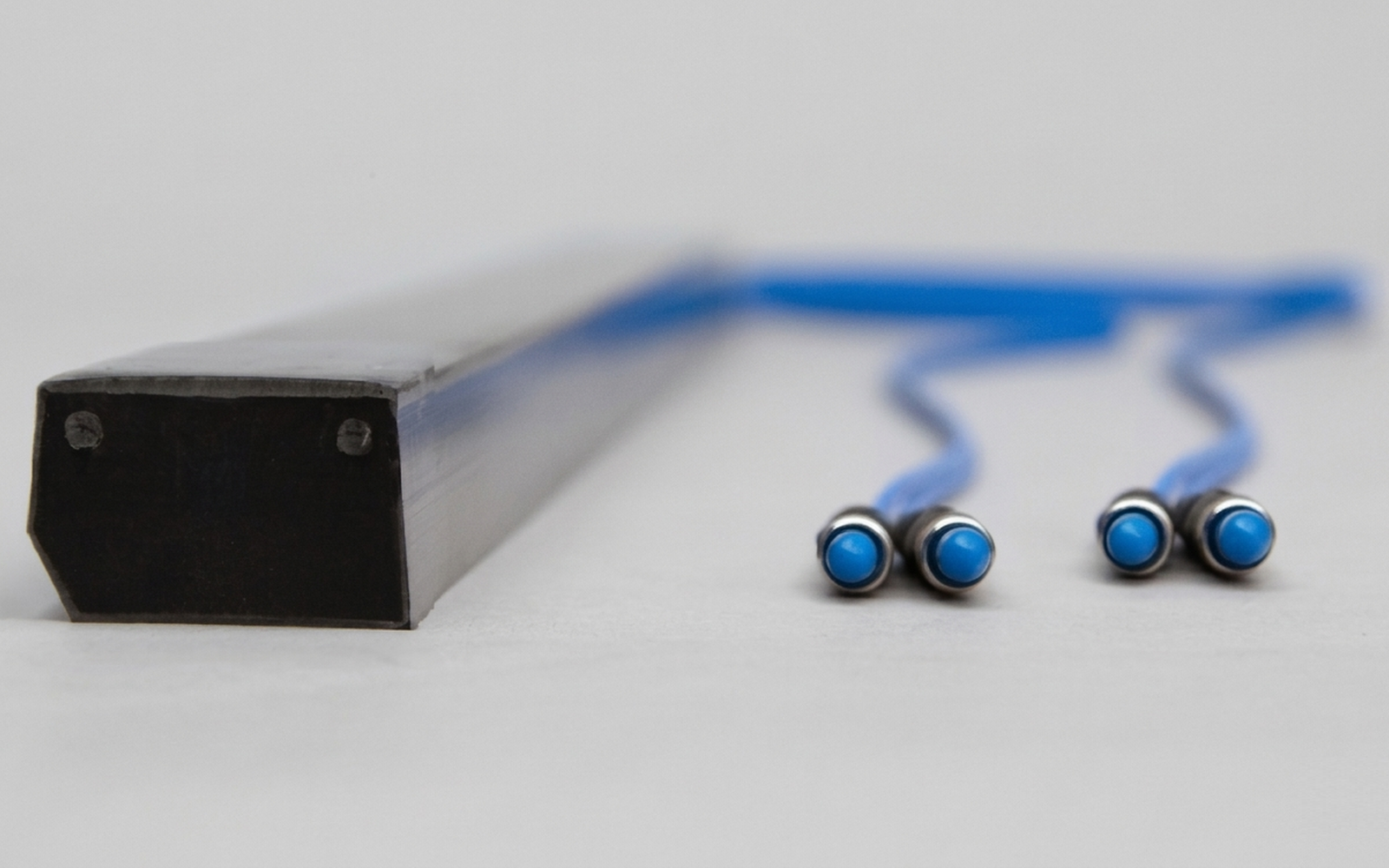

SL EZR Sensor
The SL EZR sensor is a polyurethane-based reinforced fiber optic traffic sensor replacement strip designed for permanent installation in SL EZ frames. Its special chamfered shape ensures a fast and simple replacement into an existing frame.
>> Video SL EZ Sensor Removal
>> Video SL EZR Strip Installation
Technical Data
SL SPZ Sensor
The SL SPZ sensor detects cars, trucks as well as motorbikes and bicycles (depending on the embedding material) in road traffic for axle counting, speed measurement, headway measurement, vehicle classification and cyclist counting. The SL SPZ sensor is a basic fiber optic traffic sensor designed for permanent installation in concrete or asphalt roads. The SL SPZ sensor is installed with our PU-based filler material which provides a perfect bonding to roads.
Advantages:
• 99,99+% vehicle detection rate
• Visibility independent
• Noise free signal
• Maintenance free
Accompanying Products
- SL MA-X10 - Dynamic Optoelectronic Interface for 1-3 Sensors
- SL MD-220 - Static Optoelectronic Interface for 2 Sensors
Technical Data
SL PUR-BS Sensor
The SL PUR-BS sensor is a modified SL PUR sensor for bicycle detection and cyclist counting that has a softer top layer of polyurethane-based resin than the standard SL PUR sensor. The SL PUR-BS sensor is designed for permanent installation in concrete or asphalt roads. Its special T-shape ensures a fast and long-term installation.
Accompanying Products
- SL MA-X10 - Dynamic Optoelectronic Interface for 1-3 Sensors
- SL MD-220 - Static Optoelectronic Interface for 2 Sensors
- SL PUR Slot Filler Material
- SL Hanger Bar
Technical Data
SL SMS Sensor
The surface mounted SL SMS sensor is a flat fiber optic traffic sensor designed for temporary installations in a road pocket tape (e.g. self-adhesive reinforced mastic membrane pocket tape) which is sticking on the pavement. This type of sensor allows an easy and fast installation on the road and is used for e.g. construction sites, temporary vehicle counting stations and sensor configuration test areas.
Accompanying Products
- SL MA-X10 - Dynamic Optoelectronic Interface for 1-3 Sensors
- SL MD-220 - Static Optoelectronic Interface for 2 Sensors
- SL Pocket Tape
Technical Data

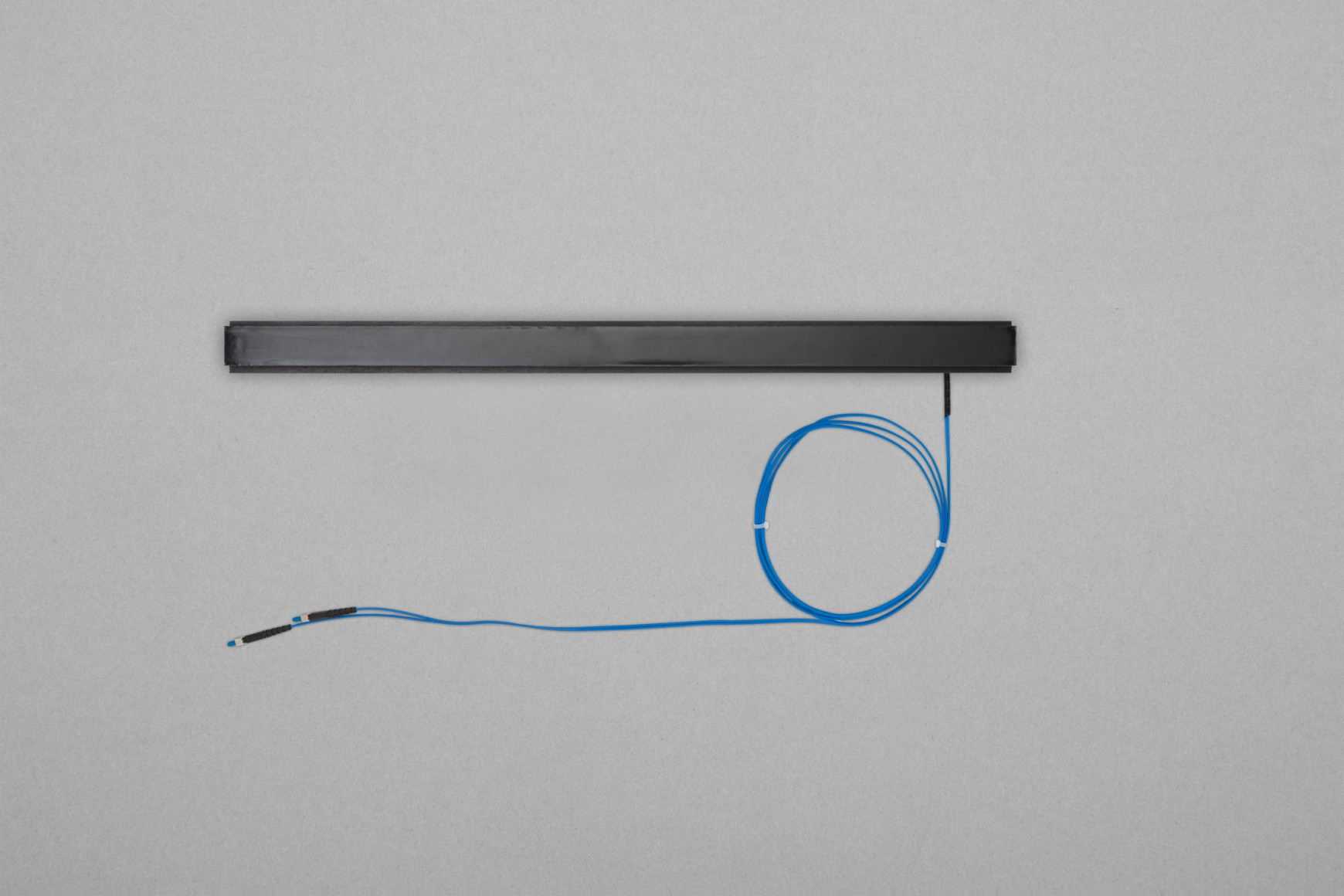

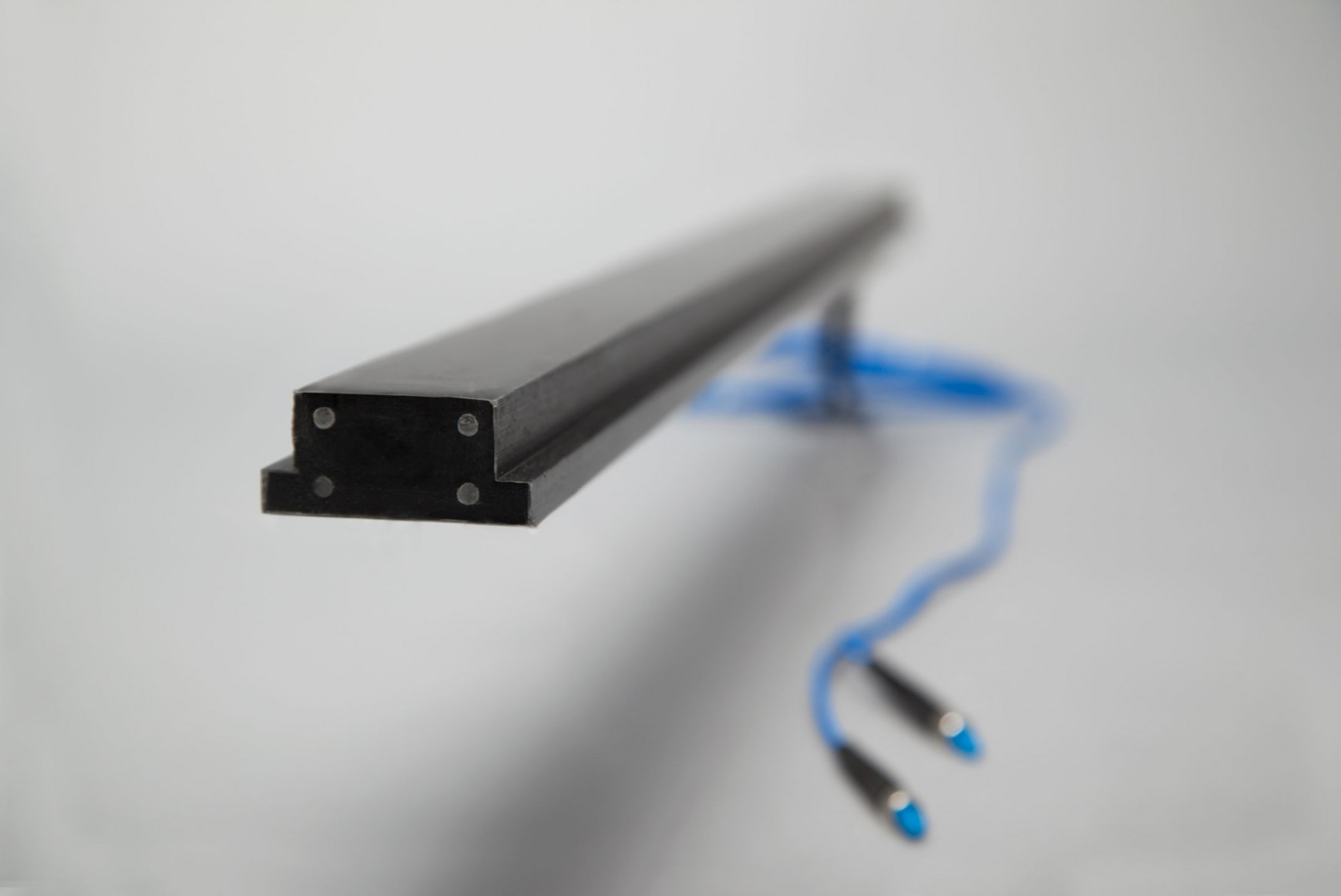

SL MTA and SL KEY sensor
The SL MTA and SL KEY sensors detect vehicles in road traffic for applications like axle counting, vehicle classification, speed measurement and headway measurement. The SL MTA and SL KEY strips are polyurethane-based reinforced fiber optic traffic sensors designed to replace T-shaped and keystone-shaped DYNAX® treadles in steel frames.
Advantages
• Quick and easy replacement
• Excellent service life
• 99,99+% vehicle detection rate
• Speed independent
• Highly reliable and maintenance free
Accompanying Products
- SL MA-X10 - Dynamic Optoelectronic Interface for 1-3 Sensors
- SL MD-220 - Static Optoelectronic Interface for 2 Sensors
Technical Data
SL XID Sensor
The SL XID sensor detects vehicles in road traffic for applications like axle counting, vehicle classification, speed measurement and headway measurement. The SL XID sensor is designed to fit exactly in pre-installed metal frames. The sensor can be replaced quickly and easily without additional roadworks, which is particularly necessary for free flow tolling.
Advantages
• Quick and easy replacement
• Excellent service life
• 99,99+% vehicle detection rate
• Noise free signal
• Maintenance free
Accompanying Products
- SL MA-X10 - Dynamic Optoelectronic Interface for 1-3 Sensors
- SL MD-220 - Static Optoelectronic Interface for 2 Sensors
Technical Data

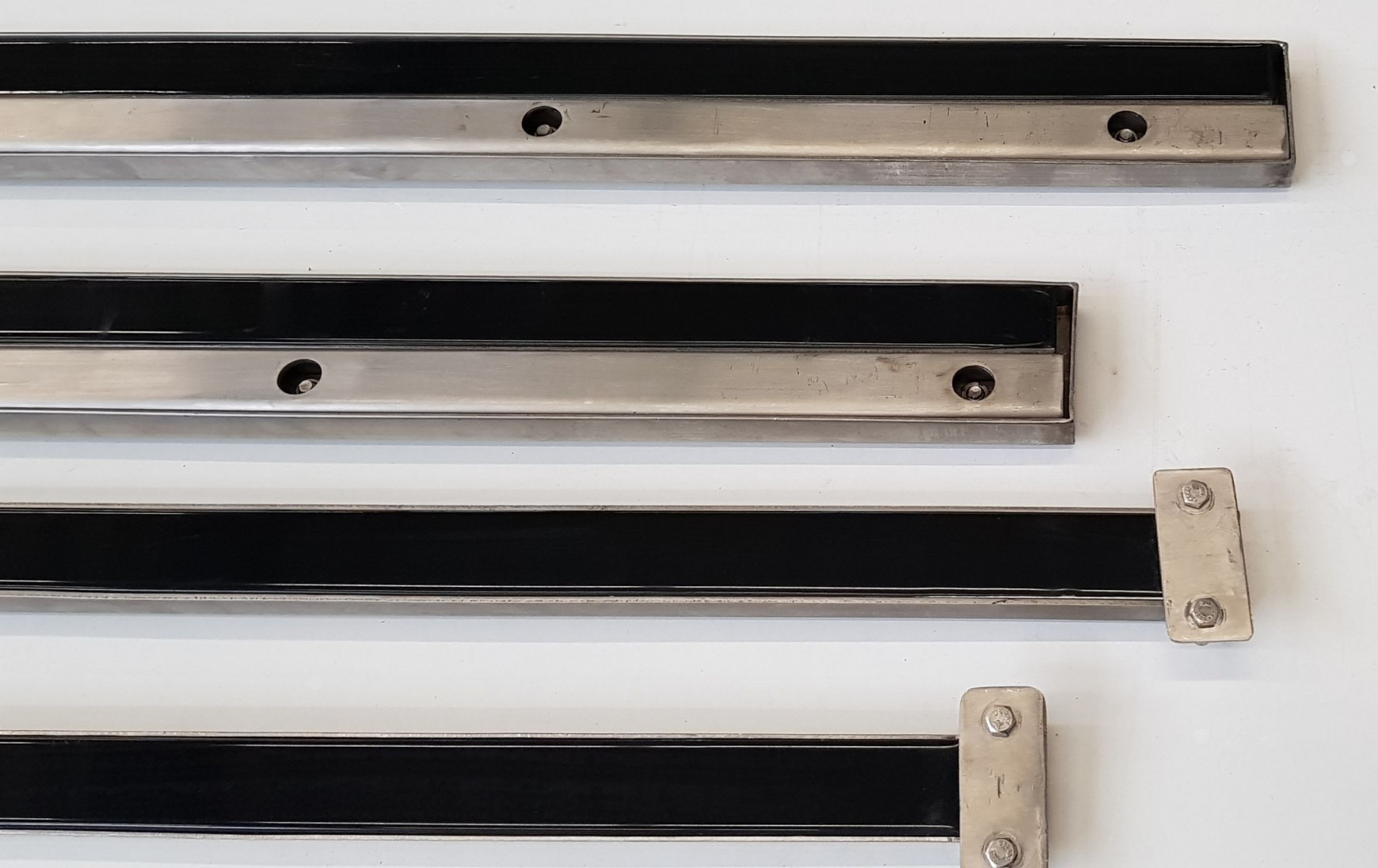

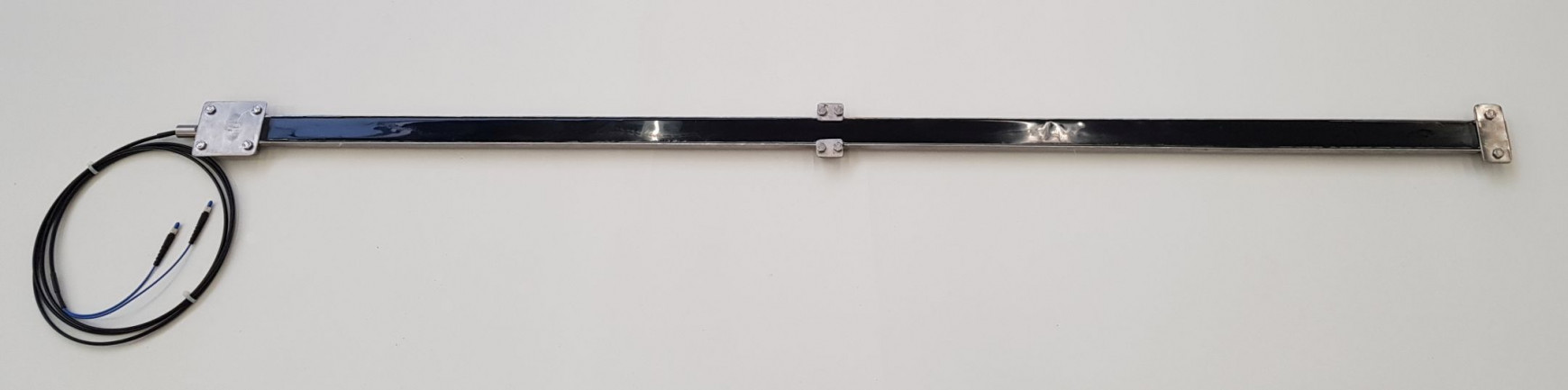

SL SCV Sensor
The SL SCV-R and SL SCV-T sensor detect vehicles in road traffic for applications like axle counting, vehicle classification, speed measurement and headway measurement. They are designed to fit exactly in pre-installed rectangular or trapezoidal metal frames and replace the contact sensors often used in South America. The sensors can be replaced quickly and easily without additional roadworks.
Advantages
• Quick and easy replacement
• Excellent service life
• 99,99+% vehicle detection rate
• Noise free signal
• Maintenance free
Accompanying Products
- SL MA-X10 - Dynamic Optoelectronic Interface for 1-3 Sensors
- SL MD-220 - Static Optoelectronic Interface for 2 Sensors
Technical Data
SL Customized
All SL Customized Senszors are especially designed for the needs of our partners. Sensor Line can form almost every shape or contour including our unique polyurethane-based reinforced fiber optic technology. For example the SL MTA Sensor, with its bottom feeder cable exit, is designed for an installation into bridges.
All custom-made sensor operate in the same way as the SL PUR Sensors. The pressure of a wheel deforms the sensor. This deformation decreases the optical transmittance inside the sensor. This transmittance change is detected by our opto-electronic interfaces like the dynamic or static optical transmittance analyzer and is transformed into signals for traffic data processing. In conjunction with our PU-base filler material, every customized sensor will have a perfect bonding to roads.
For a perfect installation
Sensor Line offers a comprehensive range of original parts and accessories to facilitate the installation and increase the performance as well as to ensure a flawless functionality of the fiber optic traffic sensors.
